What Is a Softbox? Types, Sizes & Uses | 2026 SmallRig Guide
SmallRig 2026-06-21 10:05:22
Contents
A Studio Begins With a Softbox
A softbox is, at heart, a controlled light diffuser. A bare flash is a point source — small, intense, and unforgiving. Surround that same flash with a fabric enclosure with a reflective interior and one or two layers of white diffusion on the front, and the light source becomes a large, even, rectangular panel. The result is soft, directional illumination that wraps gently around the face, smooths skin texture, and creates the kind of natural-looking catchlight that mimics a north-facing window.
This guide walks through the six SmallRig softbox types worth owning, the three size brackets that matter, the Bowens mount standard that ties them all together, and the decision tree that maps modifier to scenario.
The 6 Softbox Types Worth Knowing
1. Square Softbox (RA-R4545 Mini Square, 45 × 45 cm)
The workhorse. Square softboxes deliver even, controllable light with a symmetrical catchlight. They are the default first purchase for portrait studios because the geometry is forgiving — pointed at a face from 45°, the result is a flattering wraparound with a clean rectangular reflection in the eyes.

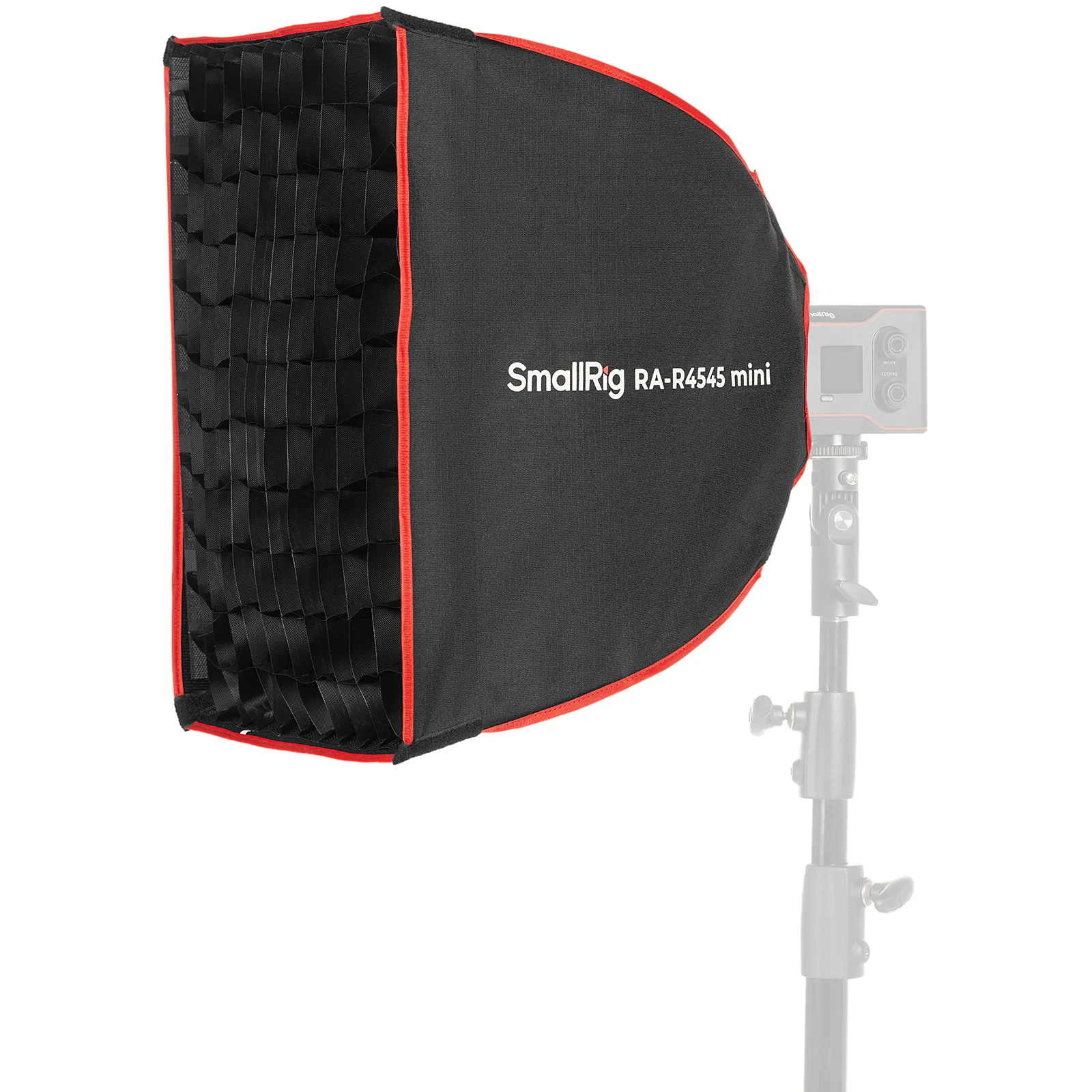

The SmallRig RA-R4545 Mini Square Softbox (4683) is a 45 × 45 cm modifier purpose-built for the SmallRig RC 60 / RC 100 series COB lights. The quick-release squeeze mechanism sets up and folds in one motion, and the included 45° honeycomb grid cuts spill when needed. Industrial-grade Oxford diffusion cloth with an anti-reflective coating keeps light loss minimal and output even.
Best for: Headshots, beauty close-ups, small products, YouTube talking-head setups, anywhere the modifier needs to disappear.
2. Rectangular Softbox (LA-R6090, 60 × 90 cm)
The window simulator. A rectangular softbox mimics the proportion of a north-facing studio window — slightly horizontal, soft, and natural. It is the most versatile modifier for three-quarter and full-length portraits, the modifier of choice for fashion and product photographers, and the one most working pros grab by default.
The SmallRig LA-R6090 Rectangular Softbox (4199) delivers 60 × 90 cm of soft, even light with exterior support ribs for shape retention, a 45° honeycomb grid, plus inner and outer diffusion cloths. Standard Bowens mount fits the SmallRig RC 120D / 120B / 220D / 220B / 350D / 350B / 450D / 450B point-source lights and the wider Bowens ecosystem.
Best for: Anything that needs a natural window light. From 60×90 up, rectangular softboxes are the safest bet in a working studio.
3. Strip Softbox (LA-R30120, 30 × 120 cm)
The edge light specialist. Strip softboxes are narrow and tall, producing a linear beam that is wide in one direction and tightly controlled in the other. The signature look is a slim, elongated highlight — perfect for outlining hair, defining cheekbones, illuminating product edges, or creating dramatic rim lights behind a subject.
The SmallRig LA-R30120 Strip Softbox (4200) is a 30 × 120 cm linear modifier with exterior support ribs, a 45° honeycomb grid, plus inner and outer diffusion cloths. Bowens mount compatible, it delivers the directional control that hair lights, kicker lights, and product rim work demand.
For shooters who pack light, the SmallRig FS-30120 Quick-Setup Folding Strip Softbox (5349) delivers the same 30 × 120 cm shape with a folding frame that collapses to roughly the size of a standard umbrella.
Best for: Hair lights, rim lights, edge definition, long reflective products (perfume bottles, glassware, knives), four-person group shots where one strip covers the entire group.
4. Octagon Softbox / Octabox (LA-O65, LA-O90, 65 / 90 cm)
The catchlight icon. Octagon softboxes produce a soft, rounded light spread and — most importantly — a natural-looking circular catchlight in the subject's eyes. The eight-sided shape eliminates the harsh corners of a rectangular box and creates a falloff that flatters round faces.
SmallRig ships two octagonal sizes:
-
SmallRig LA-O65 Octagonal Softbox (4874) — 65 cm, third-generation quick-release design, Bowens mount, industrial-grade Oxford diffusion cloth with anti-reflective coating
-
SmallRig LA-O90 Octagonal Softbox — 90 cm, the larger size for full-length portraits and editorials
The bigger the octa, the softer the light. A 65 cm octa is a tight beauty modifier. A 90 cm octa is the workhorse for fashion editorials and full-length beauty.
Best for: Beauty, fashion, maternity, newborn, headshots, and anywhere the catchlight is the brand.
5. Parabolic Softbox (RA-D60, RA-D120, FP-60, FP-90, 60 / 90 / 120 cm)
The dramatic modifier. Parabolic softboxes have a deep, bowl-shaped interior that focuses the light into a controlled beam with a pronounced bright-to-dark falloff. The result is more dimension than a regular softbox — strong highlights, deep shadows, sparkling eyes.
SmallRig ships four parabolic options:
-
SmallRig RA-D60 Mini Parabolic Softbox (4682) — 60 cm, for SmallRig RC 60 / 100 series COB lights, includes 45° honeycomb grid
-
SmallRig RA-D120 Parabolic Softbox (4140) — 120 cm, for SmallRig RC 350D / 350B / 450D / 450B point-source lights, one-step quick release, Oxford diffusor, stainless steel ribs
-

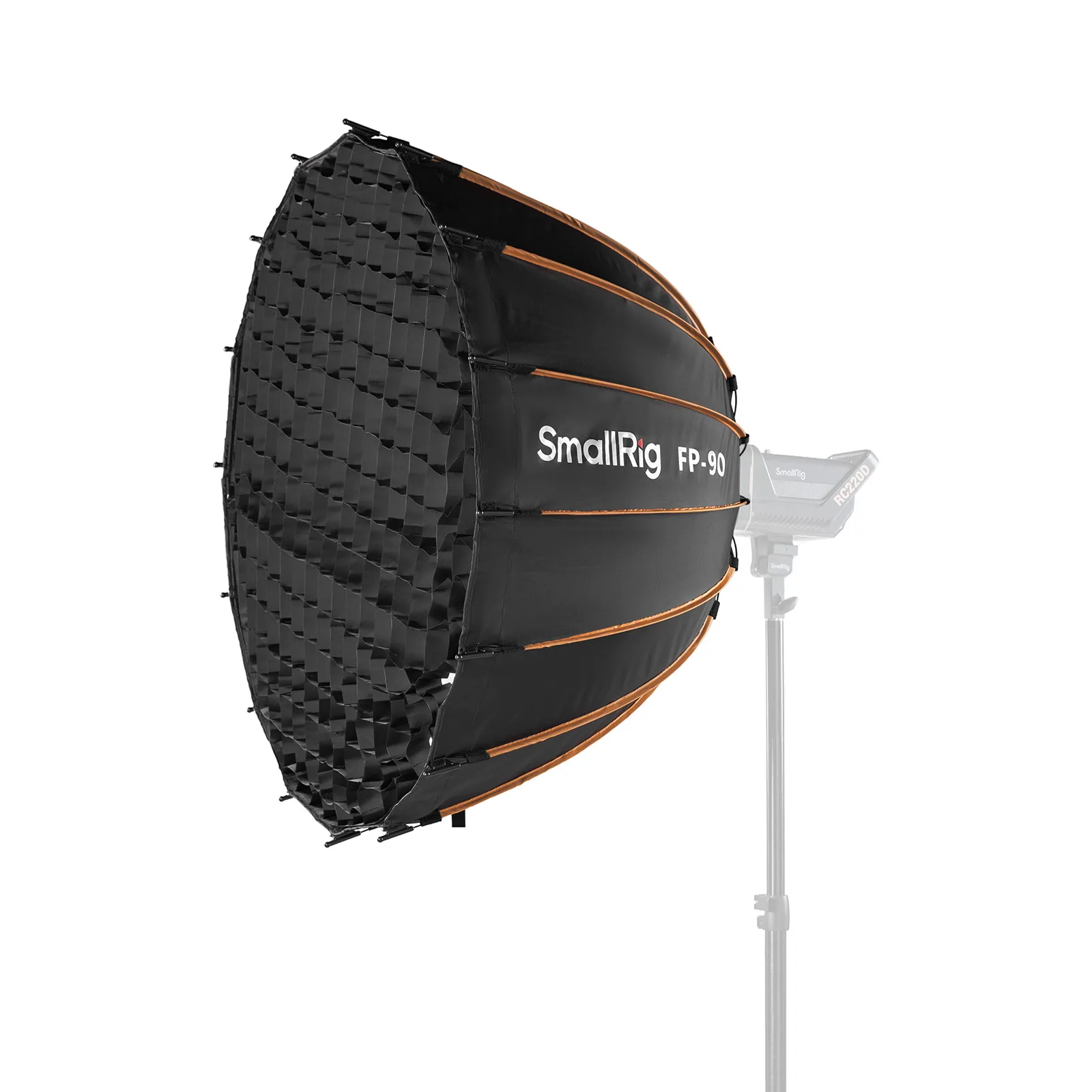

SmallRig FP-60 Quick-Setup Folding Parabolic Softbox (5396) — 60 cm folding version, 16 stainless steel rib frame, dual-layer diffusion
-

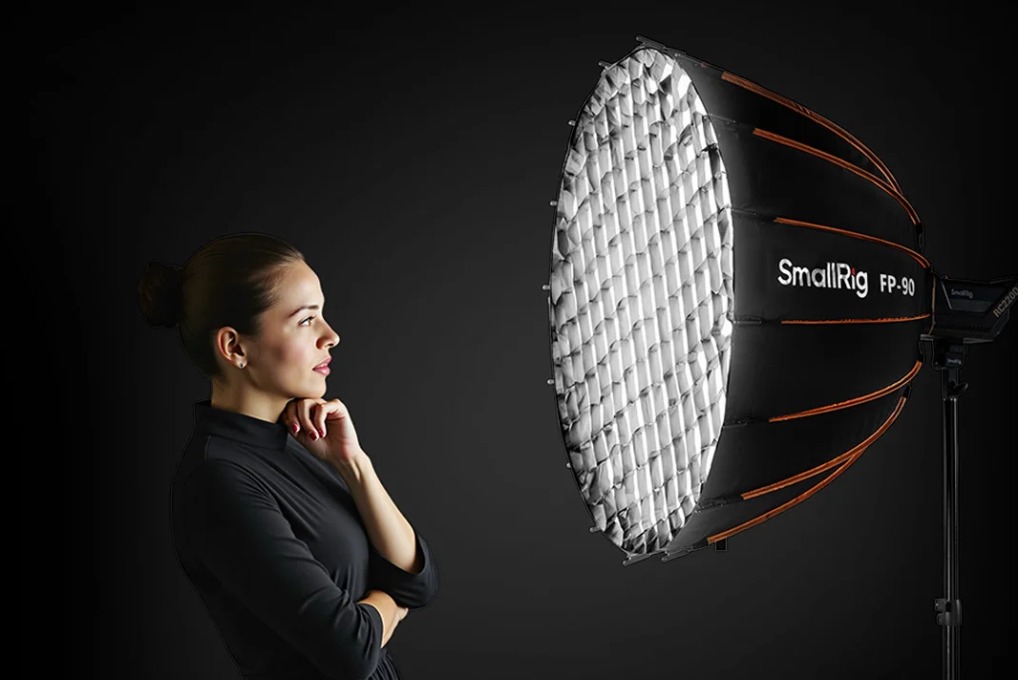

SmallRig FP-90 Quick-Setup Folding Parabolic Softbox (5395) — 90 cm folding version, same 16-rib construction, 1.7 kg total weight
The deep parabolic is a beauty photographer's secret weapon. It produces a harder light than a standard softbox but wraps enough to keep skin texture flattering. The result is the cinematic, three-dimensional look that defines fashion magazine covers.
Best for: Dramatic portraits, fashion editorials, beauty with edge, product photography where dimension matters, and the controlled specular highlights on jewelry or cars.
6. Lantern Softbox (RA-L65, 65 cm)
The 360-degree diffuser. A lantern softbox is a spherical fabric enclosure that radiates light in all directions. The result is omnidirectional, wraparound illumination with no directional falloff — the softest possible light source in a studio.
The SmallRig RA-L65 Lantern Softbox (3754) is a 65 cm diameter spherical modifier with a 270° beam angle and industrial-grade soft fabric. Universal Bowens mount fits the SmallRig RC 120D / 120B / 220D / 220B and other Bowens-mount lights. Perfect for the new generation of small-format content creators.
Best for: Documentary interviews, large group shots, full-room ambient, music videos, and anywhere the goal is "soft as possible with no direction."
The Bowens Mount Standard
A softbox is useless without a compatible speedring. SmallRig softboxes use the universal Bowens mount, the industry standard that ties the entire ecosystem together.
|
Mount
|
Compatibility
|
Why It Matters
|
|---|---|---|
|
Bowens
|
SmallRig RC 60 / 100 / 120D / 120B / 220D / 220B / 350D / 350B / 450D / 450B
|
Universal standard. 80%+ of the market. A single set of Bowens-mount softboxes works across the full SmallRig COB line.
|
The 2026 trend: Bowens-mount softboxes are increasingly the default because the ecosystem has converged. SmallRig's full softbox line — RA, LA, FP, FS series — all ship with Bowens, so a single modifier set works across every SmallRig COB light from the RC 60 mini up to the RC 450B flagship.
8 Shooting Scenarios — Decision Tree
|
Scenario
|
Recommended SmallRig Modifier
|
Size
|
Why
|
|---|---|---|---|
|
Headshot / Beauty close-up
|
LA-O65 or RA-D60
|
65 cm octa / 60 cm parabolic
|
Round catchlight + skin definition
|
|
Three-quarter portrait
|
LA-R6090
|
60×90 cm
|
Window-light mimicry
|
|
Full-body fashion
|
LA-O90 or RA-D120
|
90 cm octa / 120 cm parabolic
|
Coverage + soft falloff
|
|
Hair / Rim light
|
LA-R30120 or FS-30120
|
30×120 cm
|
Linear highlight, edge definition
|
|
Product (small)
|
RA-R4545 Mini Square
|
45×45 cm
|
Controllable spill, even light
|
|
Product (large / reflective)
|
LA-R30120 + diffusion
|
30×120 cm
|
Edge definition, controlled highlights
|
|
Documentary interview
|
RA-L65
|
65 cm lantern
|
360° wraparound, no harsh shadows
|
|
On-location travel
|
FP-60 / FP-90 folding parabolic
|
60 / 90 cm
|
Folds flat, sets up in 30 seconds
|
|
Drama / Fashion with edge
|
RA-D120 or FP-90
|
120 / 90 cm
|
3D light falloff, controlled specular
|
|
Group shot (4+ people)
|
LA-R30120 strip or RA-D120 parabolic
|
30×120 / 120 cm
|
Single modifier covers the group
|
2026 Trends Worth Knowing
-
Quick-release is the new default. SmallRig's third-generation quick-release squeeze mechanism (LA-O65) and folding frame (FP-60 / FP-90) have made one-motion setup a baseline expectation. By 2026, every new SmallRig softbox ships with quick-release as standard.
-
Bowens-mount convergence. The market has standardized. 80%+ of new continuous LEDs and strobes ship with Bowens. A single set of SmallRig Bowens-mount softboxes works across every RC-series COB light — from the RC 60 mini to the RC 450B flagship.
-
Honeycomb grids are now standard accessories. The 45° honeycomb grid used to be a luxury add-on. In 2026, SmallRig bundles it with the LA-R6090, LA-R30120, RA-D60, RA-D4545, and the rest of the modifier line.
-
Foldable parabolic is rising. The deep parabolic used to require a rigid rod assembly. SmallRig's FP-60 and FP-90 fold flat for travel while keeping the 16-rib bowl shape — 1.2-1.7 kg total weight.
-
LED + softbox = standard video rig. The SmallRig RC-series COB lights paired with Bowens-mount softboxes is the default video lighting rig in 2026. The continuous-power workflow has made strobe-only softboxes feel dated.
Final Thoughts
Whether you’re a beginner portrait shooter, product photographer, or on-location content creator, this 2026 softbox breakdown simplifies modifier selection. Match your shooting scene to the right SmallRig softbox type, size and Bowens mount gear, to get clean, flattering studio light with zero guesswork.
